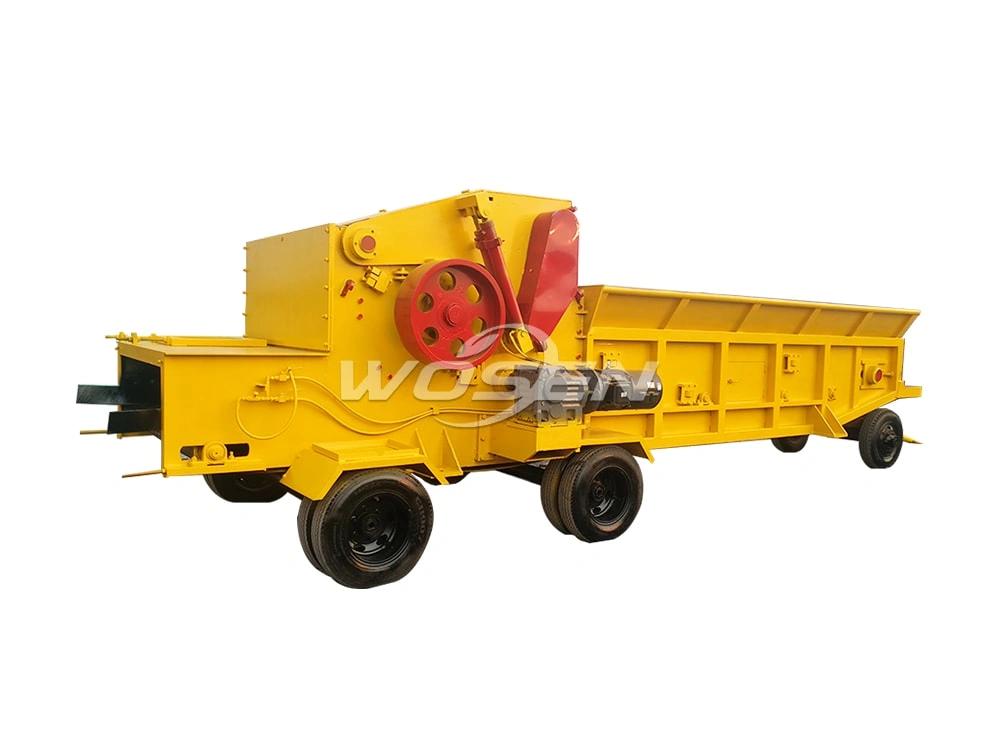

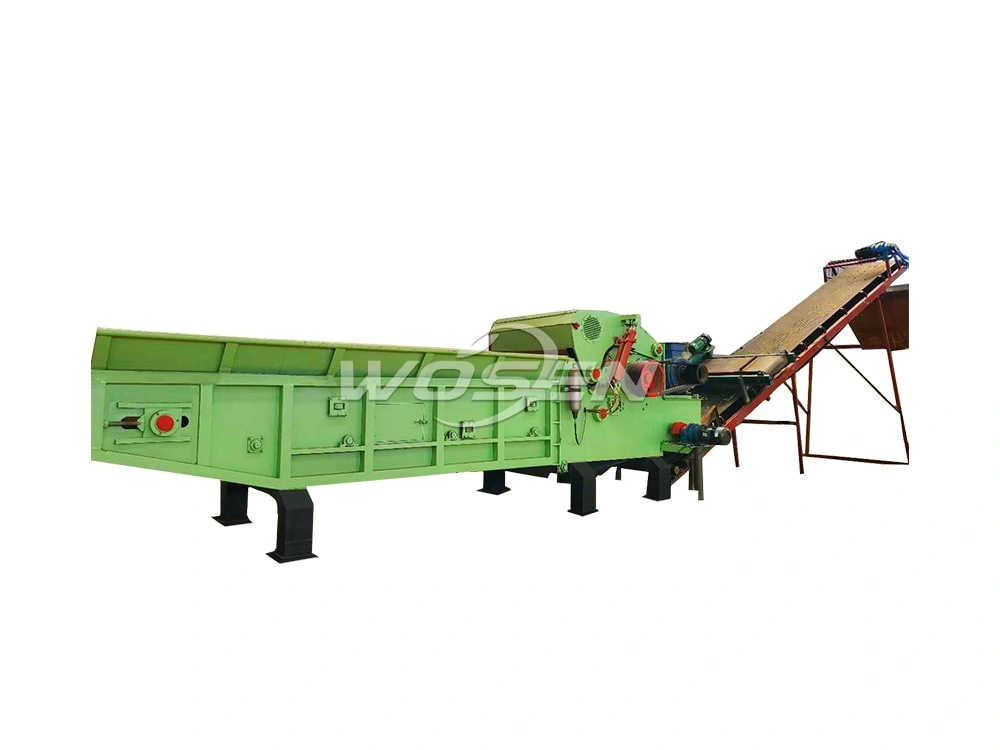

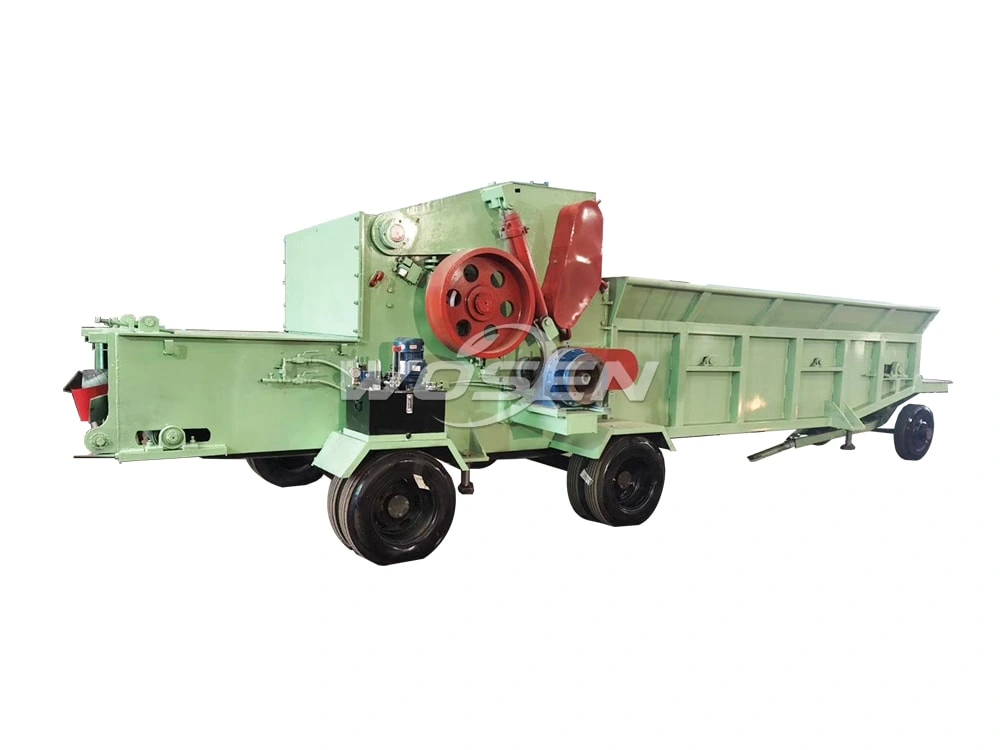

Wood Composite Crusher

  • Wood composite crusher is mainly suitable for tree trunk,building formwork, waste wood pallets, bark, board skin, scraps, branches, straw and so on. It includes the main machine, chain plate, discharging and intelligent electronic control cabinet, which are easy to operate and highly automated.

Introduction

Wood composite crusher is mainly suitable for tree trunk,building formwork, waste wood pallets, bark, board skin, scraps, branches, straw and so on. It includes the main machine, chain plate, discharging and intelligent electronic control cabinet, which are easy to operate and highly automated.

Wood composite crusher has the advantages of large production, fast speed and high efficiency. It is more powerful, stable and durable, with wide material applicability, high safety factor and production capacity, labor saving and convenient operation and repair.

Parameters
Specification WS800 WS1300 WS1400 WS1600
Feeding Inlet 800*500mm 1250*600mm 1400*600mm 1600*600mm
Blade Roller Diameter 830mm 850mm 850mm 850mm
Blade Roller Speed 850RPM 850RPM 850RPM 850RPM
Capacity 10Ton/Hour 12-15Ton/Hour 20Ton/Hour 25Ton/Hour
Fly Blade Quantity 4PCS 4PCS 4PCS 4PCS
Max. Process Wood Diameter 300mm 450mm 450mm 450mm
Motor Power 110KW 160KW 200KW 250KW

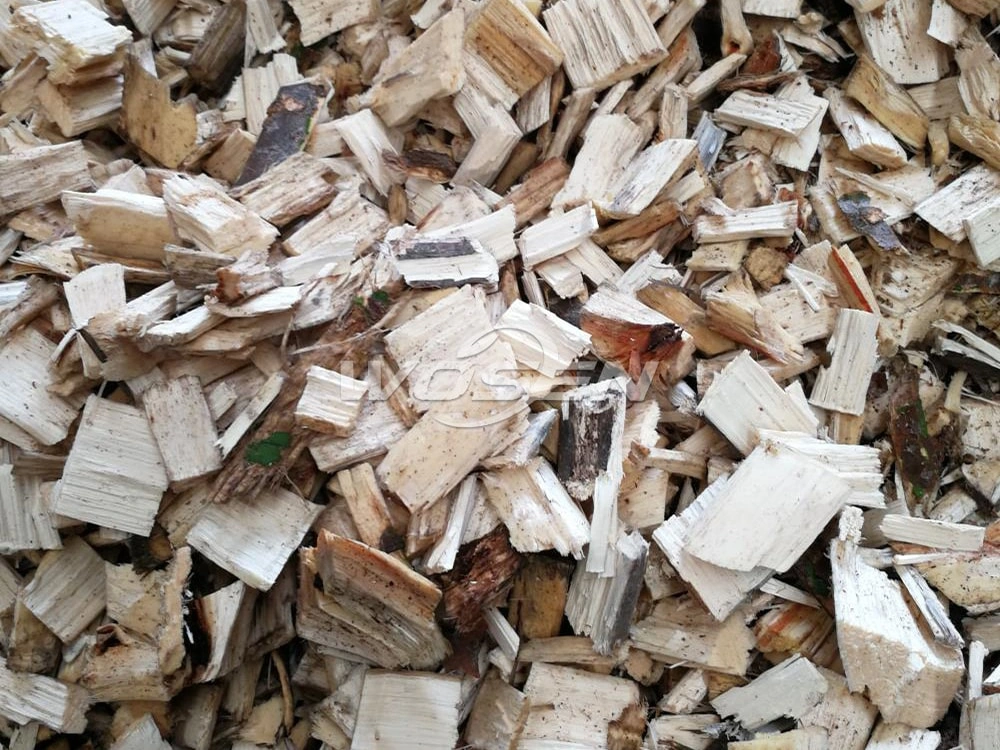

Wood Chipper Size 20-50mm 20-50mm 20-50mm 20-50mm
Feeding Chain Plate Conveyor 6 meters
Output Conveyor 10 meters
Option 1: Can make electric type or diesel type.
Option 2: Can make fix type or mobile type.
Applications

The application of wood composite crusher mainly include the following aspects:



Forestry production: In forestry production activities, wood crusher are used to cut wood materials such as logs and branches and convert them into wood chips or sawdust of a certain size. This not only improves work efficiency and reduces wood waste, but also contributes to resource recycling and environmental protection

Artificial board manufacturing: In particleboard factories, fiberboard factories and other enterprises that produce artificial boards, wood chipper are used to process wood into uniform flakes to meet the production needs of different artificial boards.

Biomass energy: Wood crusher convert waste wood into biomass fuel for power generation or heating, realizing resource recycling and sustainable development of energy.

Edible fungus production: Wood chips processed by wood chipper can also be used as raw materials for edible fungus production, promoting the comprehensive utilization of agricultural waste.



In summary, wood crusher play an important role in multiple industries, not only improving the utilization rate of wood resources, but also promoting the development of related industries.
