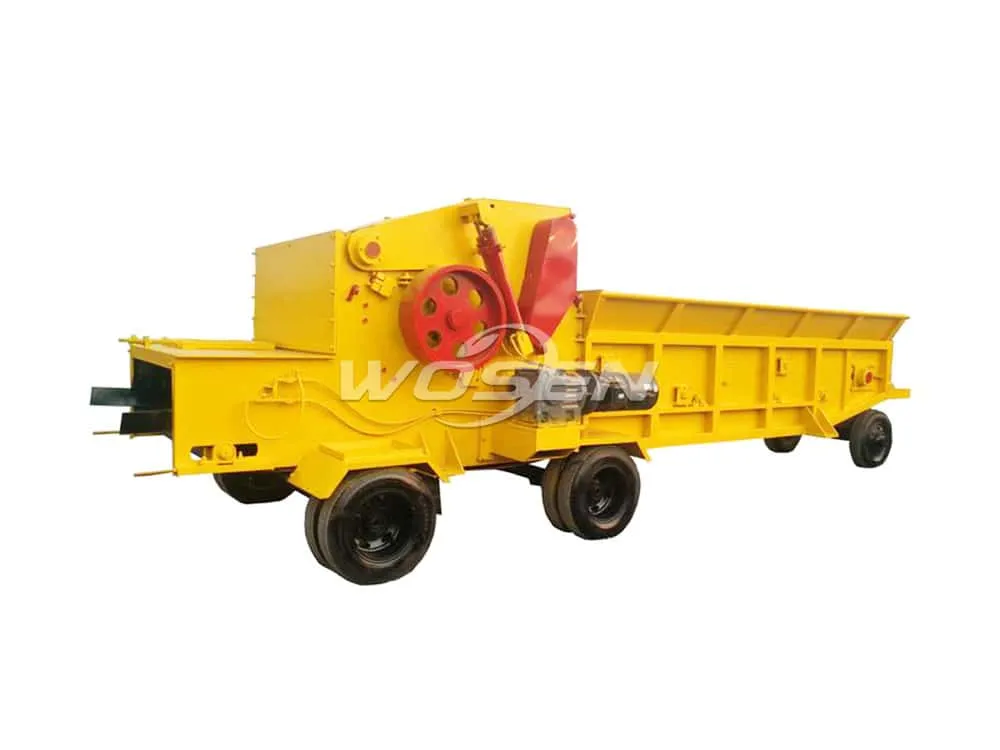

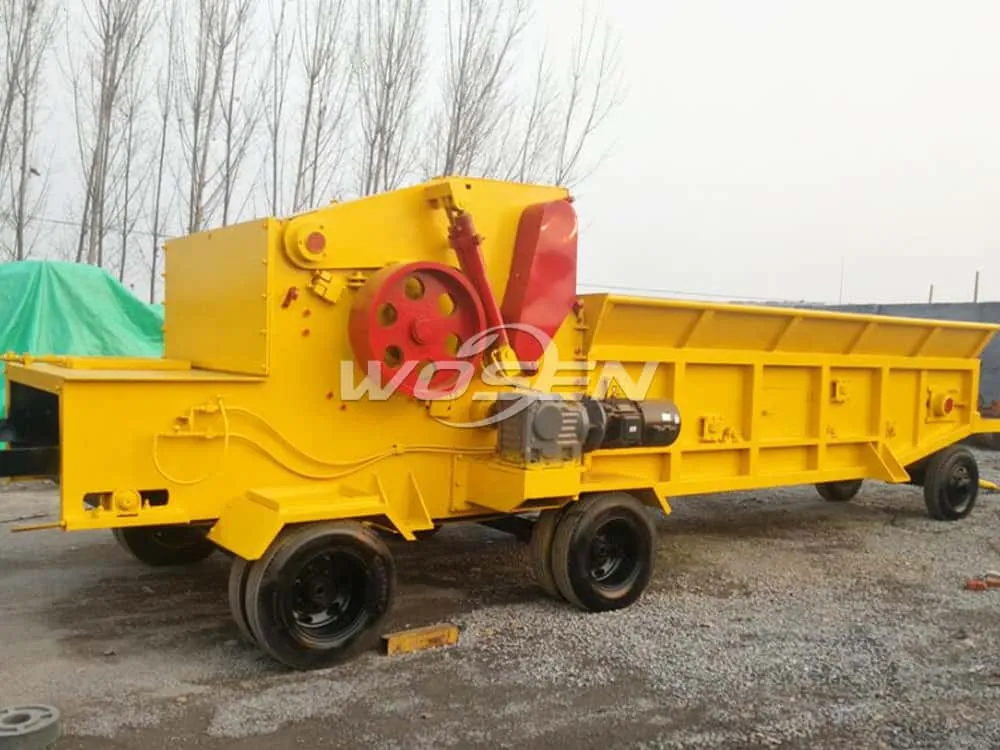

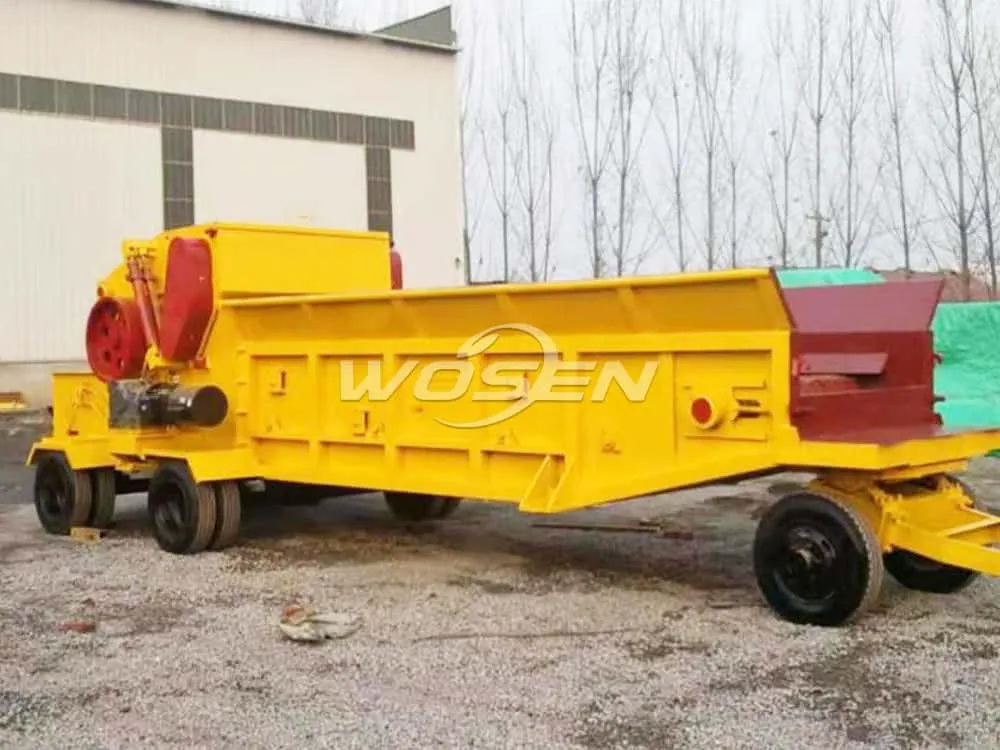

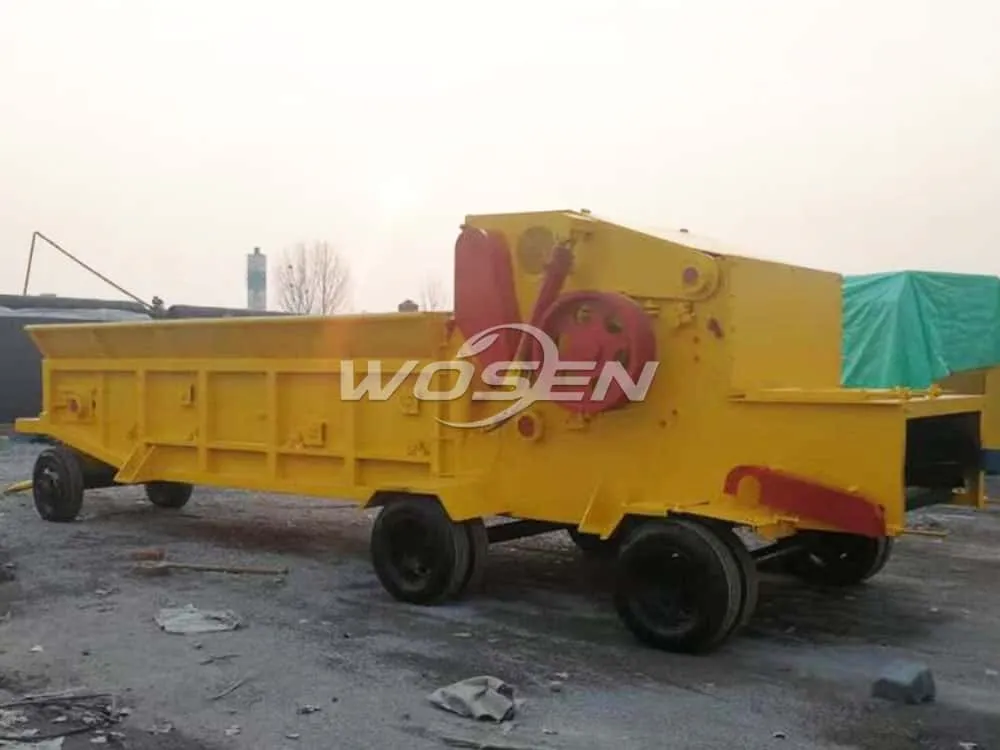

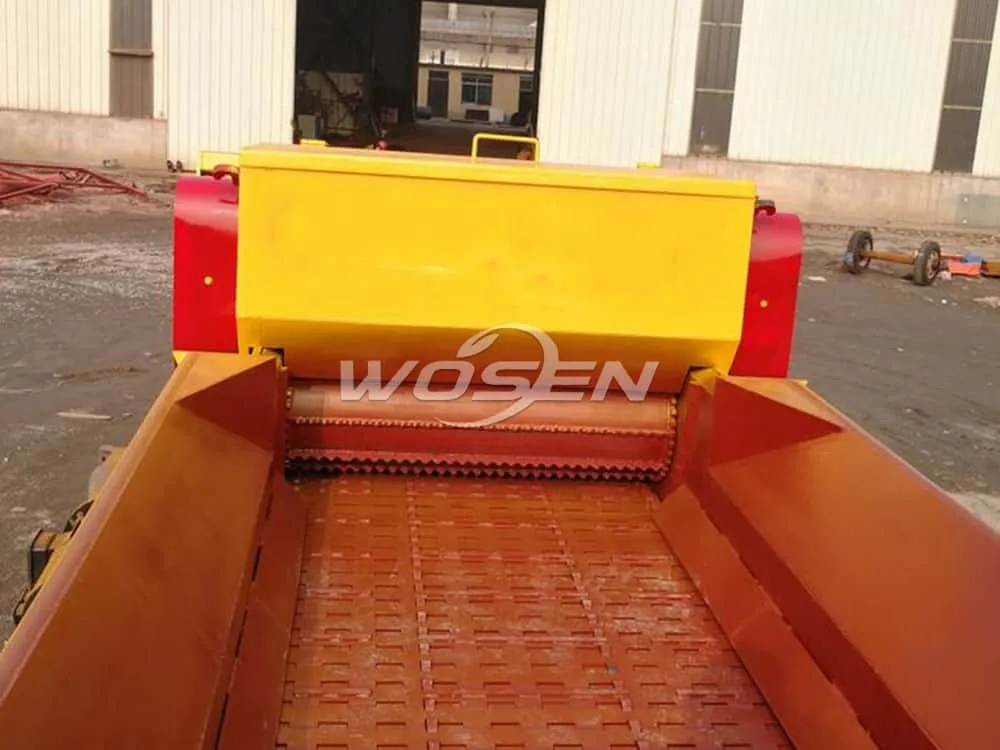

Large Drum Wood Composite Crusher

  • The wood composite crusher is mainly suitable for building formwork, waste wood pallets, bark, board skin, scraps, branches, etc. It includes the main machine, chain plate, discharging and intelligent electronic control parts, which are simple to operate and highly automated.

Introduction

The wood composite crusher is mainly suitable for building formwork, waste wood pallets, bark, board skin, scraps, branches, etc. It includes the main machine, chain plate, discharging and intelligent electronic control parts, which are simple to operate and highly automated. The wood crusher has the advantages of large output, fast speed and high efficiency. It is more powerful, stable and durable, with wide material applicability, high safety factor and production capacity, labor saving, and convenient operation and repair. It is widely used in wood recycling, biomass energy production and other fields.

Parameters
Specification WS1400
Feeding Inlet 1400*600mm
Blade Roller Diameter 850mm
Blade Roller Speed 850RPM
Capacity 20Ton/Hour
Fly Blade Quantity 4PCS
Max. Process Wood Diameter 450mm
Motor Power 200KW
Wood Chipper Size 20-50mm
Feeding Chain Plate Conveyor 6 meters
Output Conveyor 10 meters
Option 1: Can make electric type or diesel type.
Option 2: Can make fix type or mobile type.
Applications

The wood composite crusher can crush waste formwork, board, branches, logs, scraps, wooden pallets and other materials. It is more powerful, stable and durable, with wide material applicability, convenient operation and repair, and is a green and low-carbon environmentally friendly equipment. Wood composite crusher widely used in the following fields:



1. Wood processing and recycling

Furniture manufacturing: crushing scraps and sawdust for particleboard and density board production.

Waste wood processing: recycling building formwork, wooden pallets, and abandoned doors and windows.

2. Biomass energy

Process wood chips into biomass pellets for use in boilers or power generation, replacing coal and reducing carbon emissions.

3. Gardening and agriculture

Crush branches and fallen leaves to make compost or mulch, and crush pruned branches on site and return them to the field.
