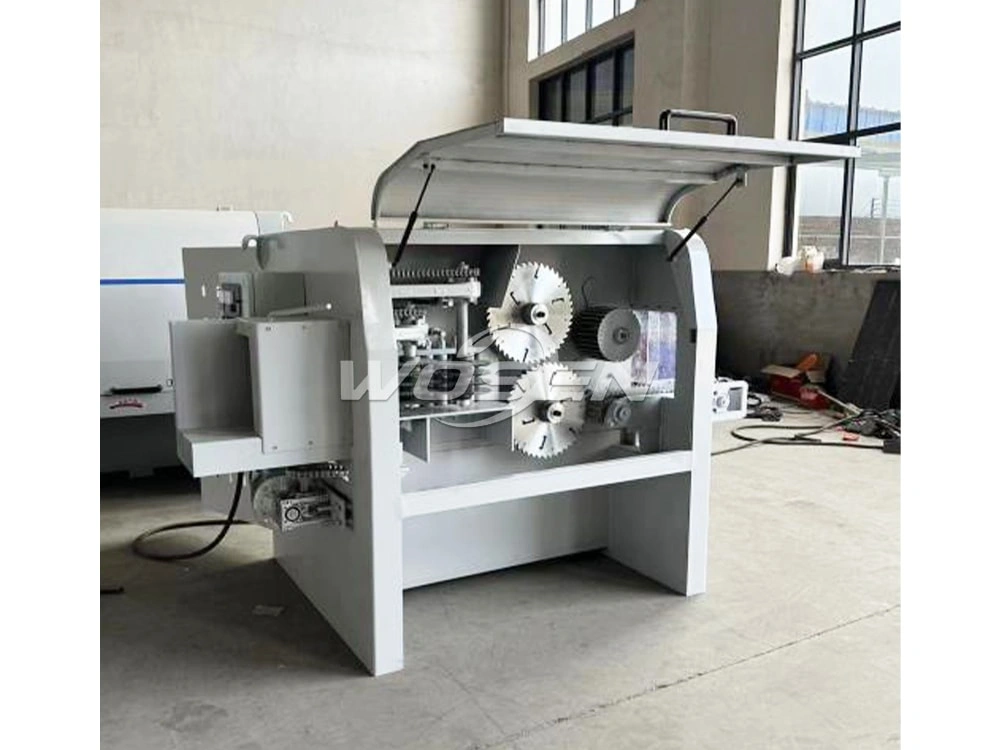

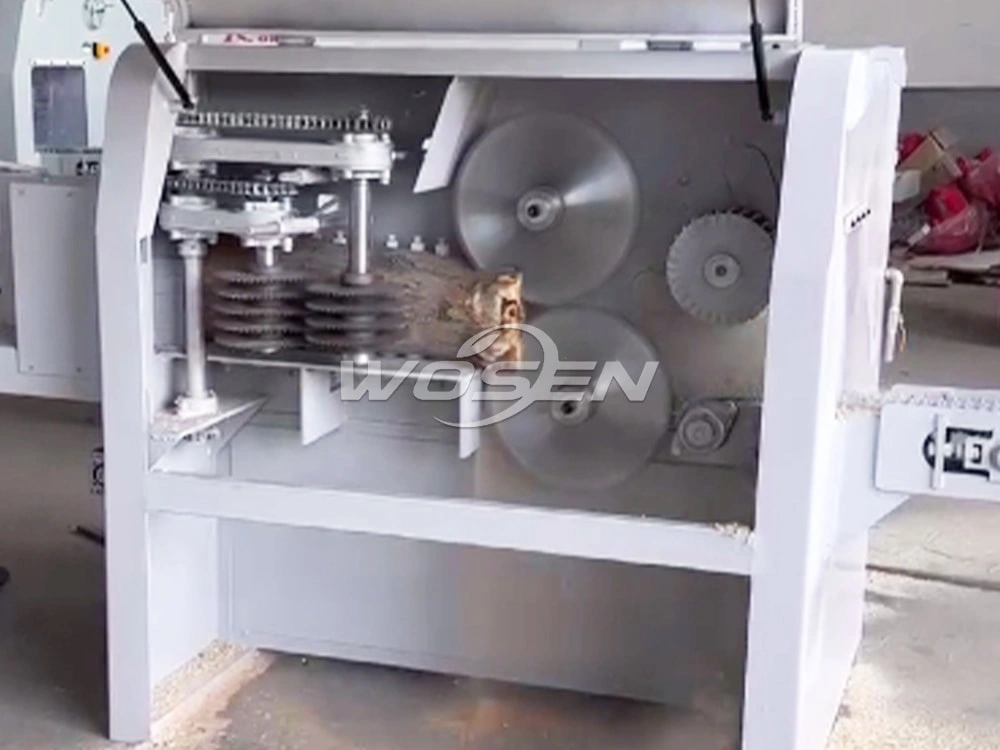

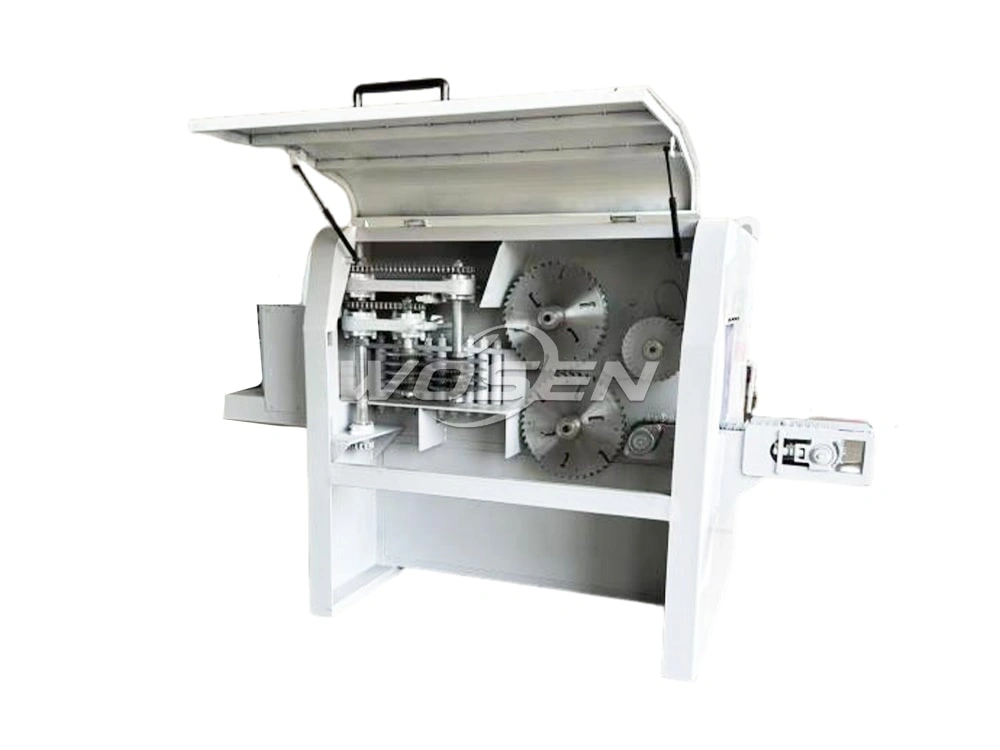

Vertical Slab Saw Multi Blade Circular Sawmill

  • The multi blade sawmill can saw triangular and semicircular edge leather into thin slices. It can be divided into one or multiple slices, with accurate slicing, small sawing path and high material yield.

Introduction

The multi blade sawmill can saw triangular and semicircular edge leather into thin slices. It can be divided into one or multiple slices, with accurate slicing, small sawing path and high material yield. It has automatic feeding throughout the process, upper and lower shaft structure, multi-blade sawing, continuous material discharge, 5-6 times more efficient than band saws, and the sawing path is thinner than other machines.

The multi blade sawmill has a stable sawing process, accurate sawing, smooth and flat surface, no need for re-planing, and reduces wood waste. It is a mechanical equipment specially used to process wood scraps.

Parameters
Model VB150 VB250 VB300 VB400
Max. Process Width 150mm 250mm 300mm 400mm
Max. Process Thickness 150mm 150mm 150mm 150mm
Saw Blade Diameter 305mm 355mm 405mm 500mm
Main Spindle Diameter 50mm 50mm 50mm 50mm
Electric Motor 11KW*2 15KW*2 15KW*2 18.5KW*2
Weight Weight 1100kg 1200kg 1300kg
Applications

The multi blade sawmill is mainly used in the wood processing industry, especially for the reuse of scraps. The main application areas are as follows:



1. Furniture manufacturing

Used to cut square wood and boards in furniture production, such as table legs, chair legs, frames, etc., to ensure accurate size and improve efficiency.

2. Wood product processing

Suitable for the production of wooden doors, window frames, stair handrails and other wooden products, to ensure consistent cutting size and improve product quality.

3. Wood wholesale and retail

Used for wood wholesalers or retailers to cut large-sized wood into small sizes for easy sales and use.
