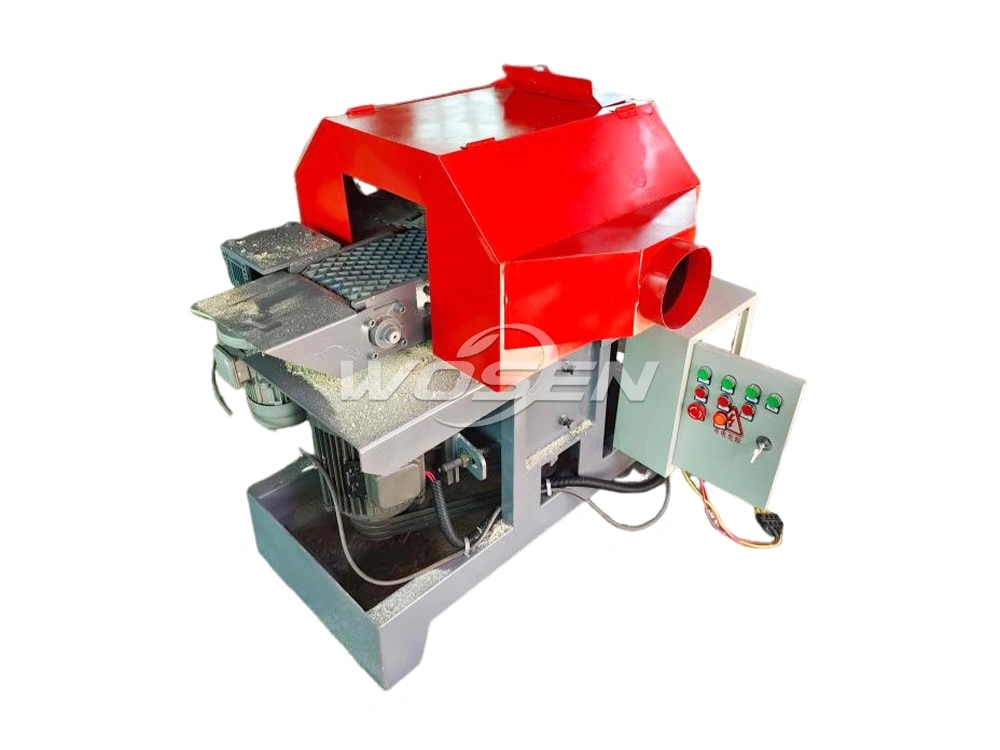

Twin Blade Circular Sawmill Horizontal Slab Cutting Saw

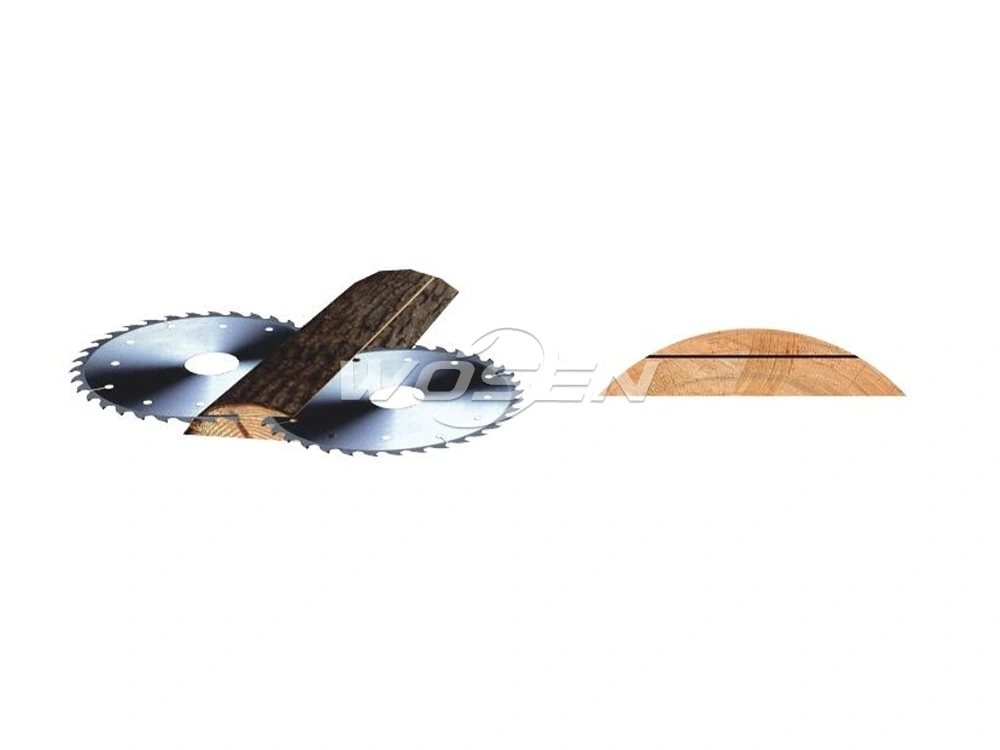

  • Multi blade saw can saw the semicircular leather into thin slices, can saw one or more slices, with small sawing path and high material output rate. The multi blade saw can saw the triangular material and edge leather into thin slices, can be divided into one or more slices, with accurate slices and small sawing path! It is an ideal equipment for making three-layer boards.

Introduction

Multi blade saw can saw the semicircular leather into thin slices, can saw one or more slices, with small sawing path and high material output rate. The multi blade saw can saw the triangular material and edge leather into thin slices, can be divided into one or more slices, with accurate slices and small sawing path! It is an ideal equipment for making three-layer boards.



1. The feed roller is installed at the feed inlet to force the feed.

2. There is a dust removal port on the top of the machine. When the dry material is opened, the vacuum cleaner can be connected to remove the sawdust.

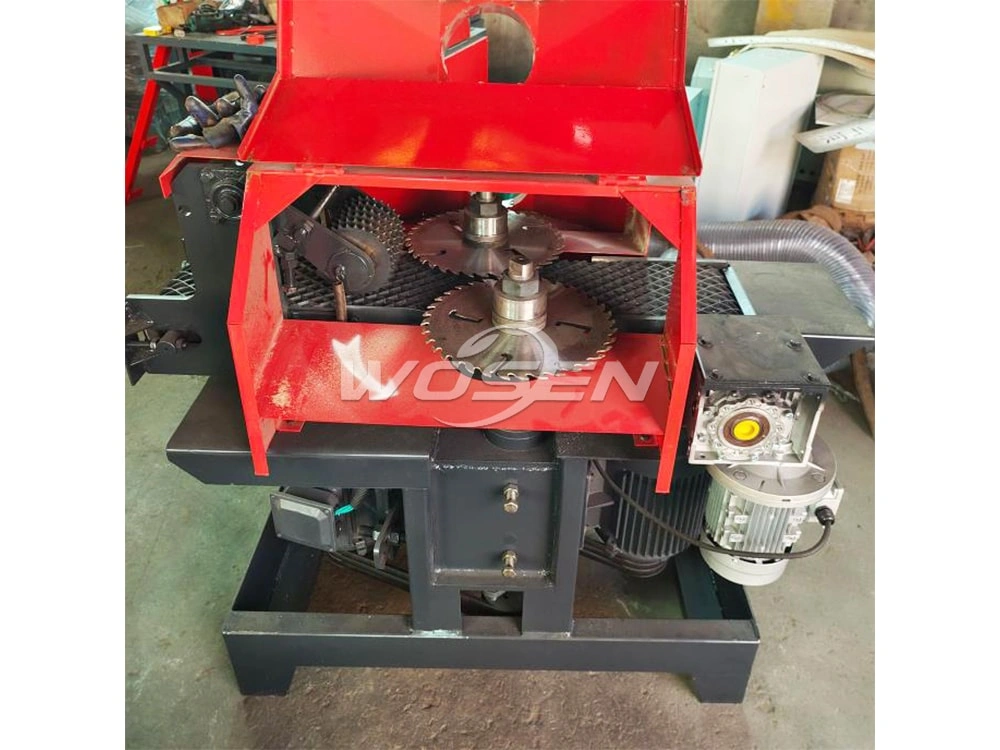

3. Full automatic feeding, upper and lower shaft structure, multi-blade sawing, continuous discharge, 5-6 times more efficient than the band saw, and the sawing path is thinner than other machines.

4. The multi blade saw has a stable sawing process, sawing accuracy, smooth and flat surface, and no need for re-pressing and planing processing. Reduce wood waste.

Parameters
Model B200 B250 B300
Processing Wood Width 200mm 250mm 280mm
Saw Blade Diameter 305mm 355mm 405mm
Main Spindle Diameter 50mm 50mm 60mm
Spacer Outside Diameter 94mm 94mm 120mm
Electric Motor 7.5KW*2 7.5KW*2 7.5KW*2
Overall Size 1450*1150*1400mm 1450*1200*1400mm 1750*1250*1550mm
Weight 400kg 450kg 500kg
Applications

The multi blade saw is mainly used in the wood processing industry, especially for the reuse of scraps.

The multi blade saw is a mechanical equipment specially used to process wood scraps. It can reuse the edge wood produced during the production and processing process and transform it into wood chips or other wood products with certain specifications. This kind of equipment usually has the characteristics of high efficiency, high stability, simple operation, easy maintenance, safety and reliability, low noise, etc., which can effectively improve the wood yield and reduce resource waste.
