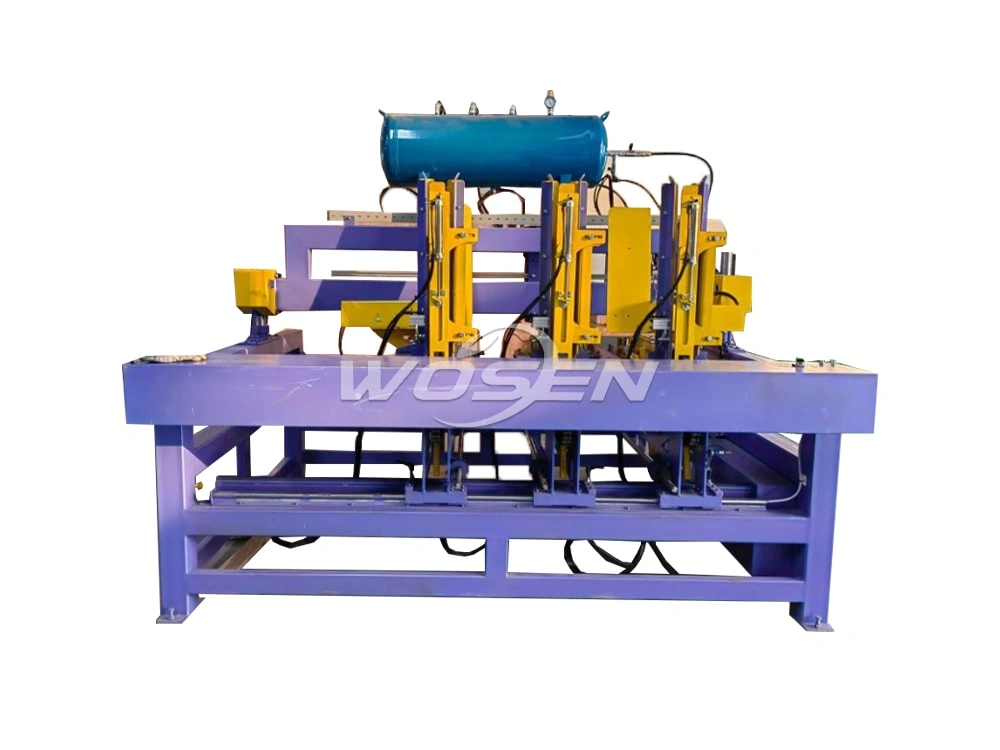

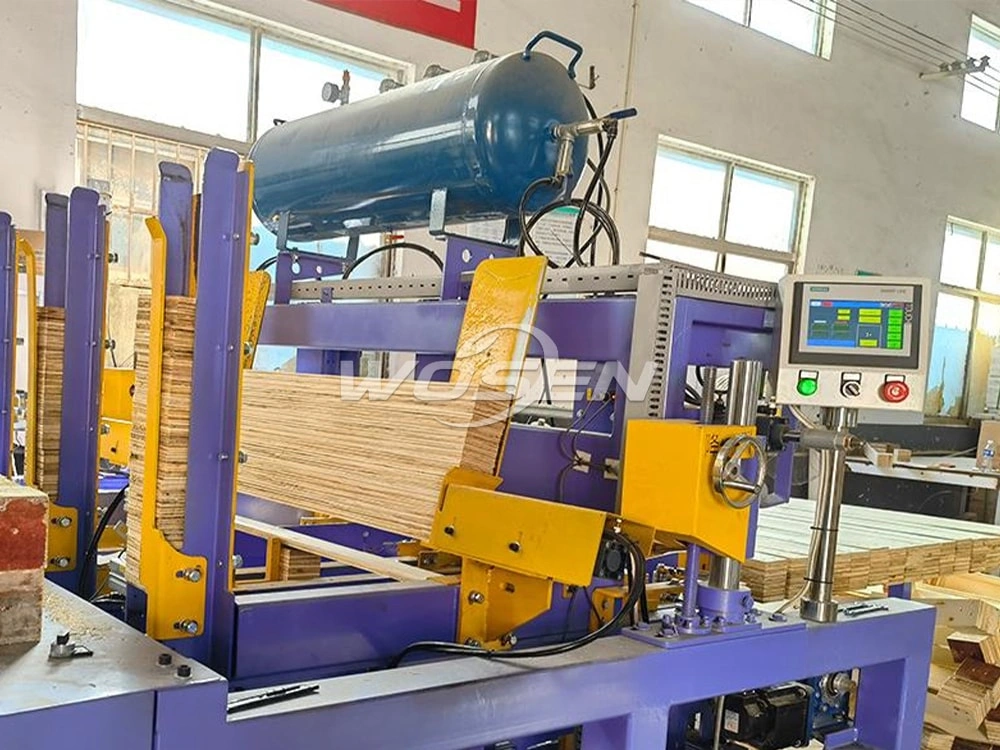

The Euro wood pallet pier connect machine is an important equipment in the European wooden pallet production line. It is mainly used to nail the wood strips and foot piers in advance to facilitate the subsequent nailing of the whole pallet. This equipment is widely used in the fields of European standard pallets, photovoltaic pallets, chemical pallets, etc., with the characteristics of high efficiency, high degree of automation, and labor cost saving.
The Euro wood pallet pier connect machine is an important equipment in the European wooden pallet production line. It is mainly used to nail the wood strips and foot piers in advance to facilitate the subsequent nailing of the whole pallet. This equipment is widely used in the fields of European standard pallets, photovoltaic pallets, chemical pallets, etc., with the characteristics of high efficiency, high degree of automation, and labor cost saving.

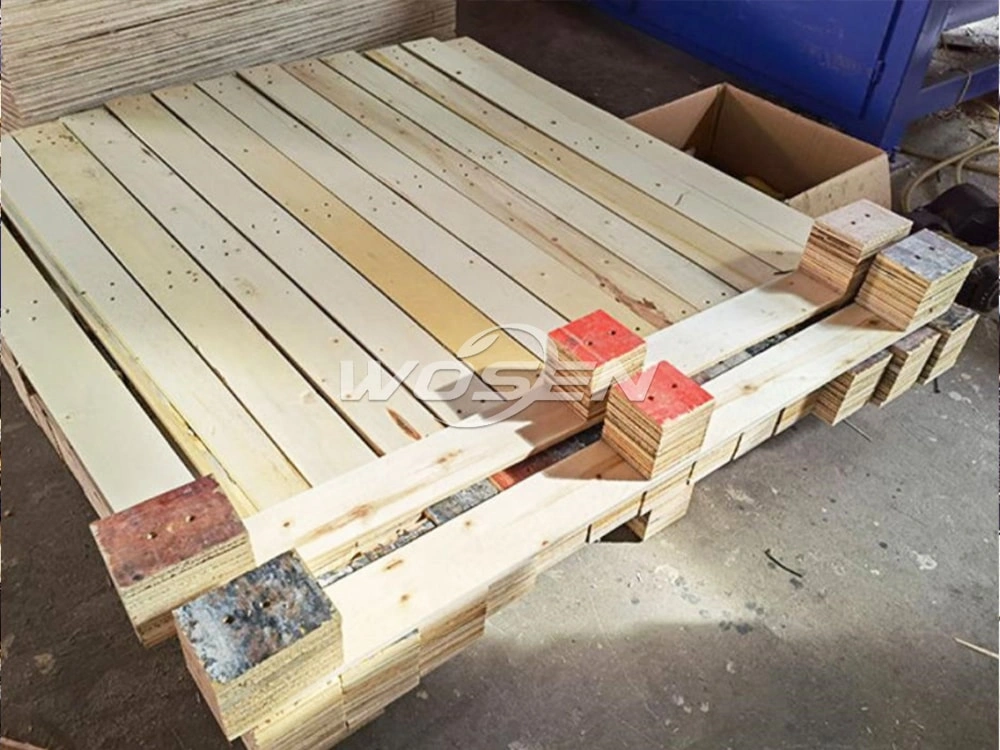

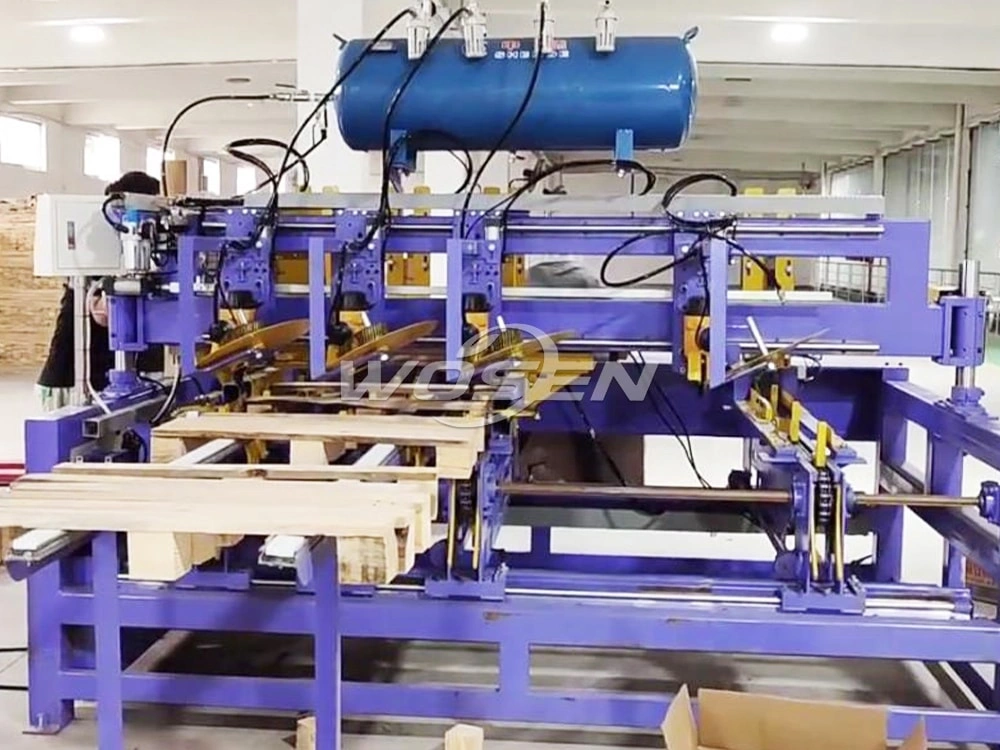

The main function of the Euro wood pallet pier connect machine is to connect the pallet bottom plate and the foot pier by nailing to form a connecting pier structure, which facilitates the subsequent assembly of pallets. Its uses include:
European standard pallet production: suitable for European standard pallets with specifications such as 1200*800mm, 1200*1000mm, etc.
| Specification | PC1300-3 |
|---|---|
| Process Length | 700-1300mm (can customize) |
| Block Size | 80-120mm (can adjust) |
| Efficiency | 600-700 pcs/hour |
| Motor | 0.75KW |
| Nailing Qty | 1,2,3,4 PCS |
| Control | PLC |

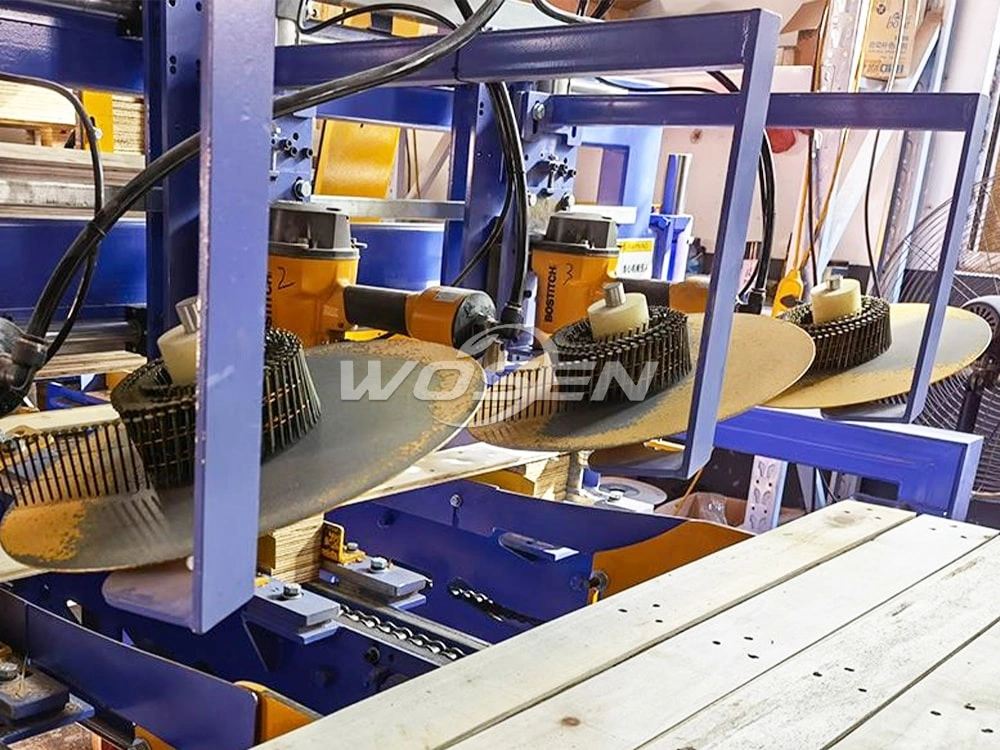

| Nailing Gun | US Stanley |
| Overall Size | 3000*1800*2000mm |
| Weight | 1000kg |
The Euro wood pallet pier connect machine is a kind of equipment specially used for the production of wooden pallets. It is mainly used to connect the pallet bottom plate and the foot pier by nailing to form a connecting pier structure for the subsequent assembly of pallets. Its application areas mainly include the following aspects:
1. European standard pallet production
The European pallet connecting machine is widely used in the production of European standard pallets, suitable for pallets of specifications such as 1200*800mm, 1200*1000mm, etc. These pallets are mainly used in continental Europe, the United Kingdom, Germany, the Netherlands and other countries, meet the EPAL standard, and are suitable for logistics, warehousing and other fields.
2. Photovoltaic pallet production
The equipment is also suitable for the production of photovoltaic pallets, especially photovoltaic pallets of special sizes, such as 2200-2500mm five-connected pier pallets. Photovoltaic pallets are mainly used for the transportation and storage of solar panels, with high load-bearing capacity and stability.
3. Other special pallet production
In addition to the above fields, the European pallet connecting machine can also be used for the production of CP pallets, Sichuan bottom pallets, Japanese bottom pallets and other pallets, which are suitable for the needs of different industries and scenarios.
4. Automated production line

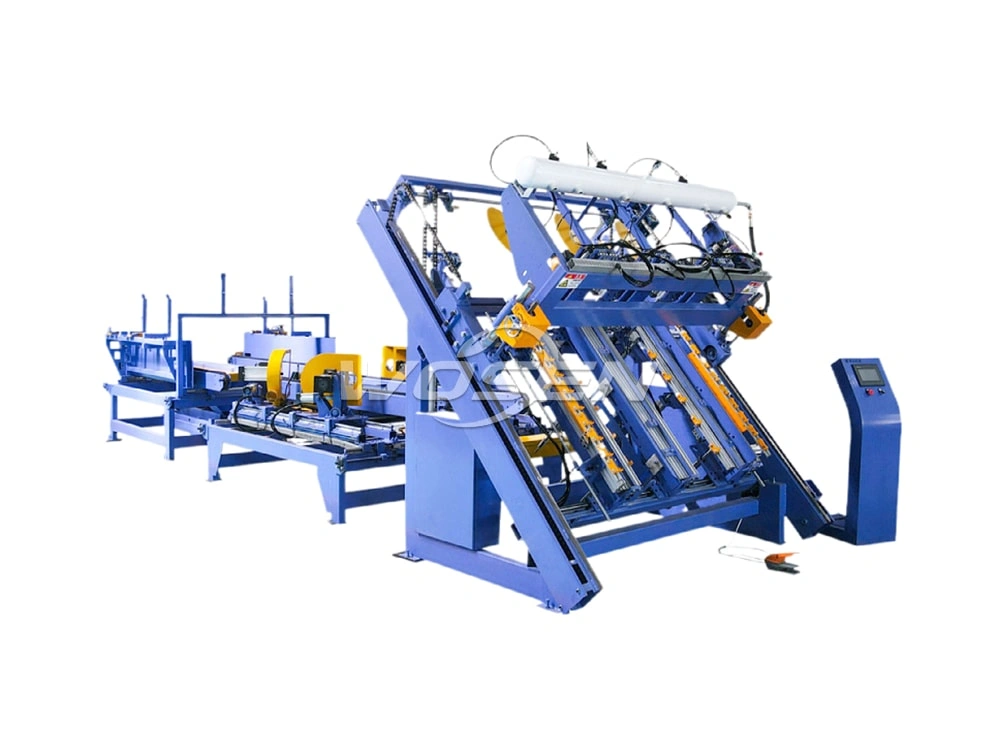

This equipment is usually used in conjunction with an automatic pallet nailing machine to form an automated production line. It is suitable for companies that produce large-scale pallets, and can significantly improve production efficiency and reduce labor costs.
