Round Wood Bar Wooden Stick Dowel Making Machine

  • The dowel making machine (also known as the wood wire machine) is a highly efficient woodworking machinery and equipment, which is mainly used to process wood into multiple round bars or wood wires. It is widely used in furniture manufacturing, handicraft processing, architectural decoration and other fields.

Introduction

The dowel making machine (also known as the wood wire machine) is a highly efficient woodworking machinery and equipment, which is mainly used to process wood into multiple round bars or wood wires. It is widely used in furniture manufacturing, handicraft processing, architectural decoration and other fields.



1. Efficient production

The dowel making machine can process multiple round bars at one time, which is suitable for batch production and significantly improves production efficiency. Some models adopt variable frequency speed regulation technology, which can adjust the feeding speed according to the wood material and optimize the processing efficiency.

2. Versatility

By replacing the tool, different functions can be achieved, such as upper and lower planing, wood strip processing, round bar forming, etc.

Some models are also equipped with sanding function, which is suitable for grinding and sanding wooden round bars, bamboo sticks, round pencil rods and sanitary chopsticks.

3. High degree of automation

The pressing system is adopted, the feeding is stable and the adjustment is convenient.

Parameters

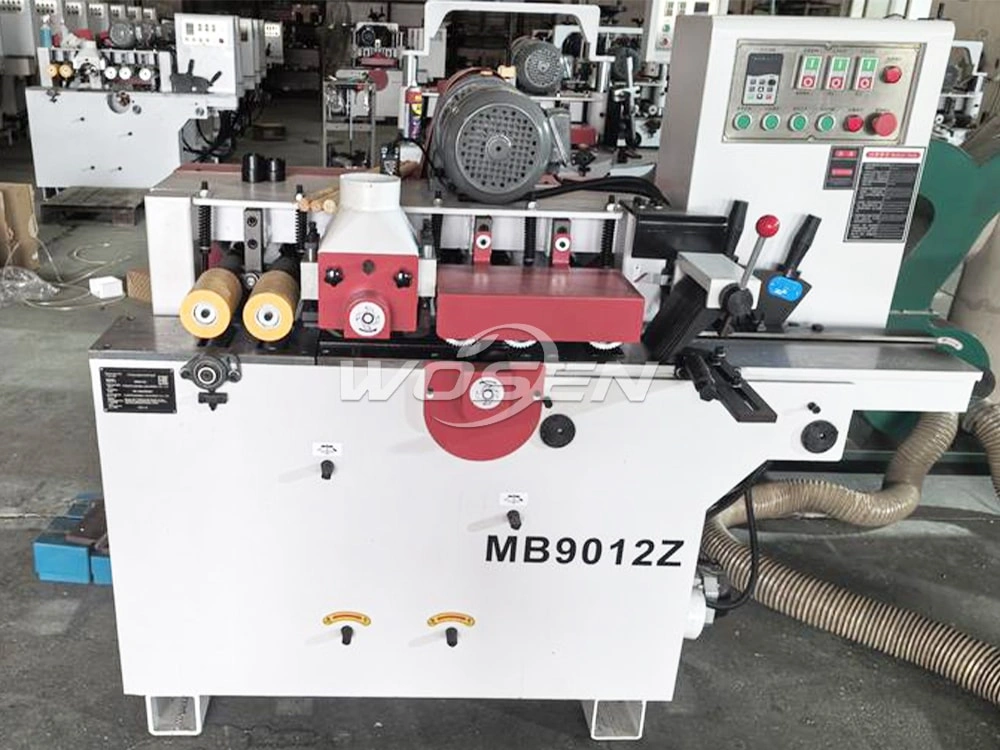

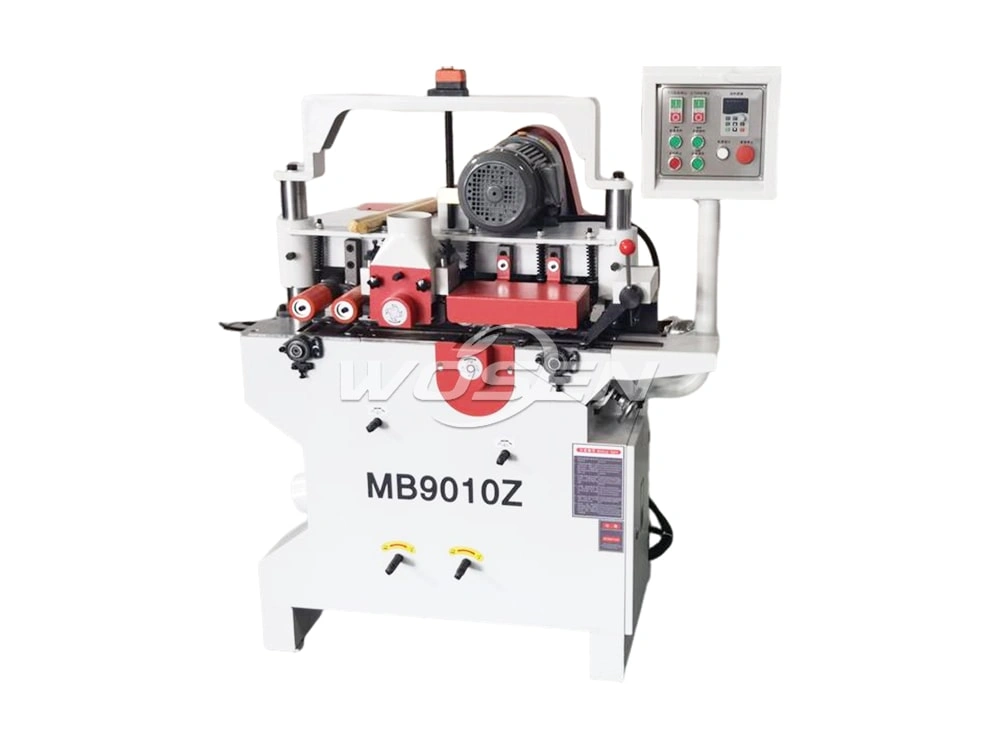

Specification MB9010Z MB9012Z MB9015Z
Max. Process Width 100mm 120mm 150mm
Process Thickness 4-45mm 4-60mm 5-60mm
Max. Process Length 250-6000mm 250-6000mm 250-6000mm
Process Pole Diameter 4-45mm 5-60mm 5-60mm
Feeding Speed 5-15m/min 5-25m/min 5-25m/min
Total Power 12.5KW 16.87KW 23.87KW
Weight 560kg 780kg 950kg
Applications

The dowel making machine is widely used in the wood products processing industry due to their high efficiency, multi-function and high degree of automation.



1. Furniture manufacturing

Used to produce round bar parts of furniture, such as chair legs, armrests, decorative lines, etc.

Applicable to the production of panel furniture to improve processing accuracy and efficiency.

2. Handicraft processing

Can process wooden handicrafts, toys, bamboo and wooden chopsticks, etc.

Applicable to the production of round pencil rods and round bar decorations.

3. Building decoration

Used to produce building decoration materials such as wooden lines, skirtings, decorative wooden strips, etc.

Applicable to the processing of outdoor products such as wooden stakes and shovel handles.
